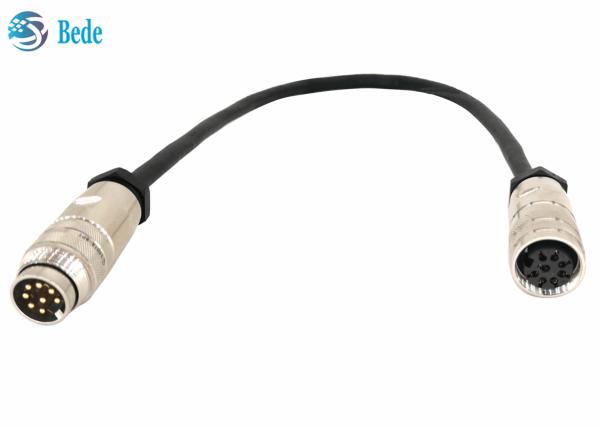

AISG Male To AISG Female Ret Control Cable 0.5M Length 8 Conductors MCU To RCU

RET Control Cables AISG Male To AISG Female 0.5M Length 6 Conductors MCU To RCU

Description:

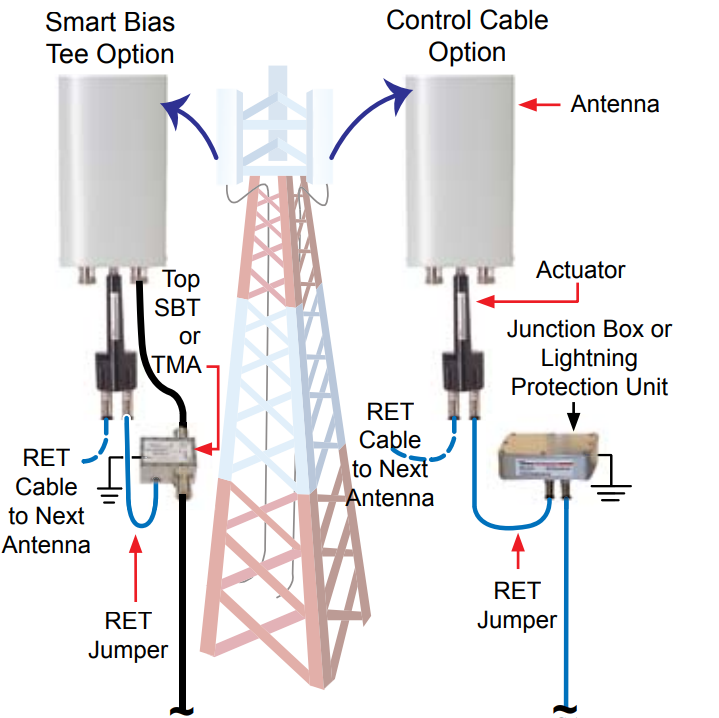

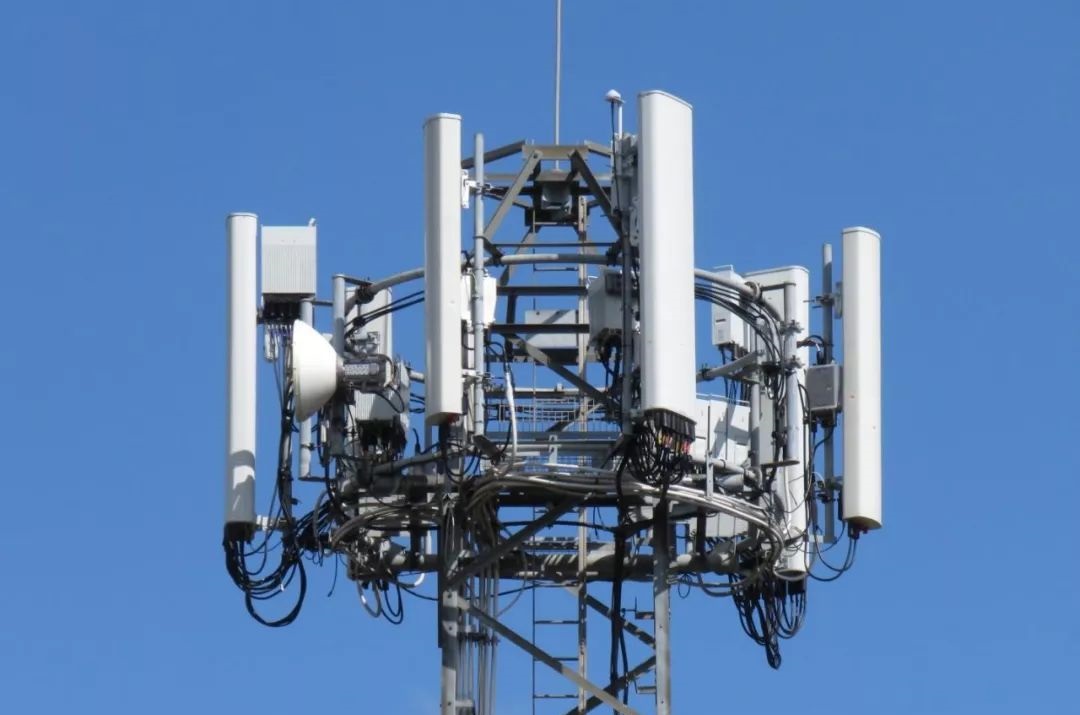

Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. This RET Cables provide a direct connect option from the Master Control Unit (MCU) to a RET module, feed data and power from controller to RET System. These cables are offered in a variety of lengths, with the shorter lengths being available to “daisy chain” multiple RET modules together at the top of the antenna base station.

Quick details:

1. Length: 0.5 meter, customized available,
2. Protocol: AISG 1.1 | AISG 2.0
3. AISG Connector: 8-pin DIN Female / Male
4. AISG Connector Standard: IEC 60130-9
5. Insulation resistance: ≥5MΩ
6. Contact resistance: ≤5mΩ
7. Connector Interfaces:Terminated AISG 8‐pin socket screw lock male and female

About the cable:

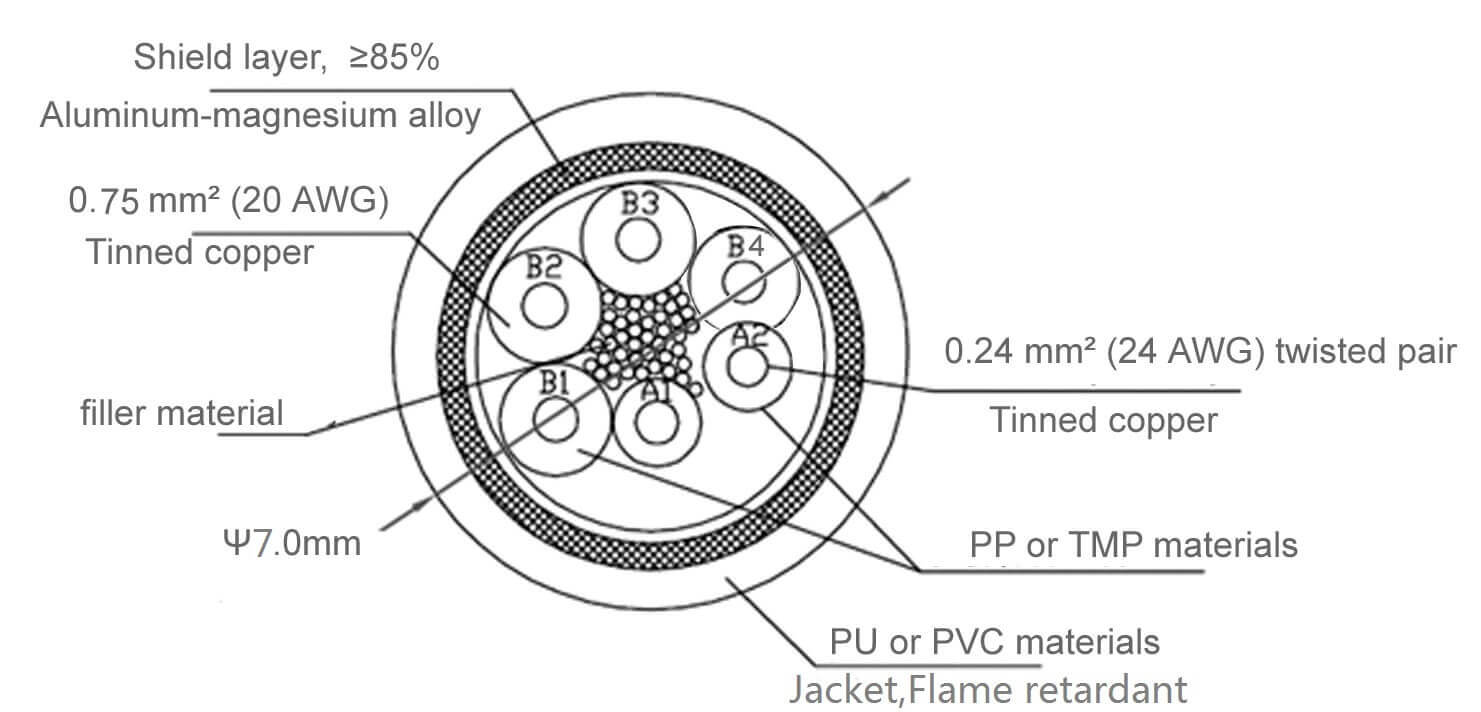

• 4 x 0.75mm²(20 AWG) stranded (power) 2 x 0.25mm²(23 AWG) twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
• 4 x 0.41mm²(21AWG) stranded (power) 2 x 0.21mm² (24 AWG)twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
• The above two wire sizes for your opinion
• The outer jacket is available in two materials for your opinion, PU or PVC
• Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%

Applications:

• Remote Electrical Tilt (RET) applications
• AISG compliant antenna control units
• Tower mount amplifiers with AISG interface
• Control Network interfaces with AISG interface

AISG Female ret control cable

ret control cable 0.5M

MCU To RCU ret control cable

AISG Male To AISG Female Ret Control Cable 0.5M Length 8 Conductors MCU To RCU Images
